ZCT-1012

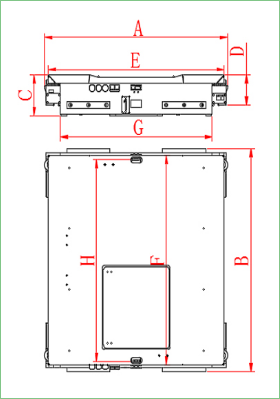

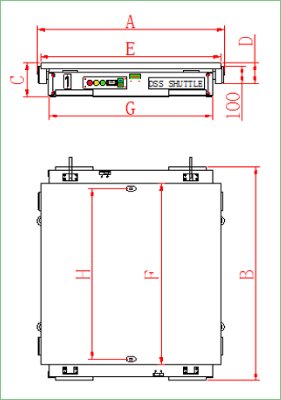

| ZCT-1210 2-Way Pallet Shuttle Efficient Shuttle Solution for 1200 × 1000 mm Pallet Storage Overview The ZCT-1210 2-Way Pallet Shuttle is designed for efficient handling of 1200 × 1000 mm pallets in high-density warehouse storage systems. It operates along straight rails inside deep-lane racking, providing a reliable and cost-effective solution for bulk storage applications such as food, beverage, and cold storage industries. Model Specifications Parameter Value Model ZCT-1210 Pallet Size (W × D) 1200 × 1000 mm Movement 2-Way (Forward & Backward) Load Capacity 1200 / 1500 kg Lifting Height Max. 50 mm Power Supply Battery Key Features Stable bi-directional movement along rails High-performance DC servo drive system Mechanical screw lifting mechanism Wireless remote control (433 MHz) Long battery life with fast charging Reliable operation for high-density storage Typical Applications Standard pallet warehouses (1200 × 1000 mm) Food & beverage storage Cold storage facilities Manufacturing finished goods storage High-density pallet racking systems Rail & Deceleration Options The ZCT-1210 supports multiple rail types and deceleration methods: Option Rail Size Deceleration Method Option A 50 × 148 mm Dual-hole deceleration Option B 70 × 163 mm Plate deceleration Option C 50 × 148 mm Plate deceleration Custom configurations are available based on project requirements. Option A – 50 × 148 mm Rail (Dual-hole Deceleration)  Parameter Value (mm) A – Shuttle Width 828 B – Shuttle Depth 1400 C – Shuttle Height 191 D – Wheel to Top Surface 118 E – Lifting Platform Width 790 F – Lifting Platform Depth 1220 G – Body Width 700 H – Sensor Distance 1160 Rail Spacing 832 Recommended for: Standard heavy-load applications with stable operation requirements. Option B – 70 × 163 mm Rail (Plate Deceleration)  Parameter Value (mm) A – Shuttle Width 879 B – Shuttle Depth 1260 C – Shuttle Height 192.5 D – Wheel to Top Surface 147.5 E – Lifting Platform Width 840 F – Lifting Platform Depth 1210 G – Body Width 710 H – Sensor Distance 1160 Rail Spacing 883 Recommended for: Applications requiring smoother deceleration and higher positioning accuracy. Option C – 50 × 148 mm Rail (Plate Deceleration)  Parameter Value (mm) A – Shuttle Width 826 B – Wheel Bottom to Floor 118 C – Shuttle Height 186 D – Wheel Diameter 100 E – Guide Wheel Spacing 728 F – Body Width 685 G – Front & Rear Wheel Distance 920 H – Pallet Sensor Distance 1160 I – Lift Panel Depth 1200 J – Shuttle Depth 1230 Rail Spacing 832 Recommended for: Compact layouts and space-constrained warehouse environments. General Specifications Item Specification Speed (Empty) >60 m/min Speed (Loaded) 36–54 m/min Battery Type LiFePO4 Battery Voltage 24 V Battery Capacity 60 Ah Charging Time ~3 hours Operating Time ~8 hours Motor Type DC Servo Remote Range 100 m Frequency 433 MHz System Integration The ZCT-1210 2-Way Pallet Shuttle can be seamlessly integrated with a variety of warehouse systems, including: Pallet racking systems Forklift operations Conveyor systems Autonomous Mobile Robots (AMRs) Warehouse Management System (WMS) Semi-automated and automated warehouse systems Call to Action Looking for a reliable 2-Way Pallet Shuttle for 1200 × 1000 mm pallets? Contact us for: Technical consultation Fast quotation 👉 Get a Quote / Contact Us |
