ZCF-1311
| ZCF-1311 4-Way Pallet Shuttle Smart Multi-Directional Pallet Handling for 1300 × 1100 mm Pallets Overview The ZCF-1311 is a high-performance 4-Way Pallet Shuttle designed for automated warehouse systems that require efficient handling of non-standard pallet sizes such as 1300 × 1100 mm. With intelligent four-directional movement—forward, backward, left, and right—it enables flexible material flow within dense storage systems. This model is especially suitable for warehouses handling customized pallet formats while maintaining high storage density and operational efficiency. Key Features · Four-Directional Movement: Enables seamless movement in all directions for maximum storage flexibility. · Mechanical Lifting System: Ensures stable and precise pallet handling with 56 mm lifting stroke. · Adapted for Non-Standard Pallets: Optimized for 1300 × 1100 mm pallet applications. · High Efficiency: Direction change time ≤4 seconds for continuous operation. · Intelligent Communication: WiFi-based control supporting automatic and manual operation modes. · All-Environment Capability: Suitable for both ambient and cold storage conditions. Technical Overview General Specifications Item Specification Notes Main Feature | Mechanical lift, intelligent 4-way movement Ambient Version | -5°C ~ 45°C Cold Storage Version | -25°C ~ 0°C Rated Load | 1000 / 1500 kg | >2000 kg optional, custom solutions available Shuttle Weight | 350~400 kg Lifting Stroke | 56 mm Direction Change Stroke | 0 mm Travel Brake | Electric servo brake | Releases when powered off Lifting & Direction Motor | DC 48V 750W / 1000W Travel Motor | DC 48V 1200W / 1500W Positioning Accuracy | ±2 mm | Using positioning plate Acceleration | 0.3~0.5 m/s² Travel Speed (Empty) | ≤1.5 m/s Travel Speed (Loaded) | ≤1.2 m/s Direction Change Time | ≤4 s Lifting Time | ≤4 s Communication | WiFi client Charging Method | Manual / Automatic charging station Battery Capacity | 51.2 V 40 Ah | Optional Charging Time | 1.5–2 h (Ambient) / 2–3 h (Cold) | 20A / 12A Battery Type | LiFePO4 Battery Life | 1200+ cycles (100% depth) Operational Time | 6–8 hours Control | Automatic / Manual Operation Mode | Online / Standalone / Manual Protection | Temperature alarm / Collision protection Body Color | Yellow / Black / Gray | Customizable Pallet Shuttle Configuration Item Specification Shuttle Size (L×W×H) 1200 × 1080 × 164 mm Pallet Size(W×D) 1300 × 1100 mm Parameter Value (mm) Notes

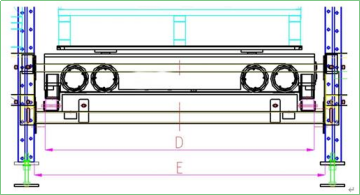

A 980 Integrated track rail spacing B 202 Integrated track rail height C 500 First pallet layer height from floor D 1200 Outer edge spacing of rails E 1250 Column spacing The storage lane adopts a welded cantilever structure with integrated rails, ensuring stability and precise shuttle operation in high-density storage environments. Application Modes The ZCF-1311 supports four flexible system configurations: Shuttle + AGV System – Wireless communication Shuttle + Shuttle Carrier System – Wireless communication Shuttle + Stacker Crane System – Wireless communication Shuttle + Forklift System These configurations allow users to balance automation level, cost, and efficiency based on project requirements. Industry & Applications Industries: Food & Beverage Electronics Manufacturing General Manufacturing Application Scenarios: The ZCF-1311 is designed for automated warehouses requiring high storage density, flexible operations, and optimized space utilization. Typical applications include: Ambient storage warehouses Cold storage high-density systems Material storage warehouses for complex production System Integration The ZCF-1311 is engineered to work as part of a coordinated warehousing system, where multiple equipment types operate together to streamline pallet movement. It can interact with upstream and downstream equipment such as conveyors, lifting systems, and automated handling units, forming a continuous material flow inside the warehouse. This model is particularly suitable for projects that require handling of customized pallet sizes while maintaining system consistency, ensuring smooth operation across different storage zones. Call to Action Looking for a 4-Way Pallet Shuttle for 1300 × 1100 mm pallets? We can help you design a solution tailored to your warehouse layout and operational needs. Contact us for: Project evaluation and layout planning Customized solution design Fast quotation 👉 Get a Quote / Contact Us Toda |
