ZCF-1210
| ZCF-1210 4-Way Pallet Shuttle Smart Multi-Directional Pallet Handling for 1200 × 1000 mm Pallets Overview The ZCF-1210 is a high-performance 4-Way Pallet Shuttle designed for automated warehouse systems requiring high-density pallet storage. It supports pallets sized 1200 × 1000 mm and provides flexible four-directional movement—forward, backward, left, and right—within racking systems. This model is ideal for medium to large warehouses, cold storage facilities, and production line finished goods storage, offering reliable and efficient pallet handling for modern automated warehouses. Key Features * Four-Directional Movement: Moves forward, backward, left, and right for maximum flexibility in high-density storage. * Mechanical Lifting Mechanism: Stable and precise pallet lifting up to 56 mm. * High Load Capacity: Supports up to 1000/1500 kg with optional heavy-duty custom versions. * Quick Direction Change: Minimal changeover time of ≤4 seconds for efficient operations. * Intelligent Control: WiFi-based system communication, with automatic/manual control options. * Robust Design: Built for constant operation in normal or cold storage environments (-5℃ to 45℃ standard, -25℃ to 0℃ cold storage version). Technical Overview General Specifications Item Specification Notes Main Feature | Mechanical lift, intelligent 4-way movement Ambient Version | -5°C ~ 45°C Cold Storage Version | -25°C ~ 0°C Rated Load | 1000 / 1500 kg | >2000 kg optional, custom solutions available Shuttle Weight | 350~400 kg Lifting Stroke | 56 mm Direction Change Stroke | 0 mm Travel Brake | Electric servo brake | Releases when powered off Lifting & Direction Motor | DC 48V 750W / 1000W Travel Motor | DC 48V 1200W / 1500W Positioning Accuracy | ±2 mm | Using positioning plate Acceleration | 0.3~0.5 m/s² Travel Speed (Empty) | ≤1.5 m/s Travel Speed (Loaded) | ≤1.2 m/s Direction Change Time | ≤4 s Lifting Time | ≤4 s Communication | WiFi client Charging Method | Manual / Automatic charging station Battery Capacity | 51.2 V 40 Ah | Optional Charging Time | 1.5–2 h (Ambient) / 2–3 h (Cold) | 20A / 12A Battery Type | LiFePO4 Battery Life | 1200+ cycles (100% depth) Operational Time | 6–8 hours Control | Automatic / Manual Operation Mode | Online / Standalone / Manual Protection | Temperature alarm / Collision protection Body Color | Yellow / Black / Gray | Customizable Pallet Shuttle Configuration Pallet Specification: 1200（W） × 1000(D) mm Shuttle Dimensions: L1100 × W980 × H64 mm Parameter Value (mm) Notes

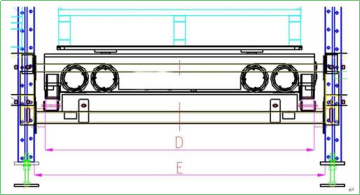

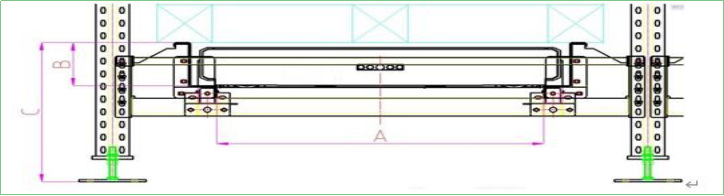

B 202 Integrated track rail height C 500 First pallet layer height from floor D 1100 Outer edge spacing of rails E 1150 Column spacing The shuttle runs on welded cantilevered racks with integrated rails, providing stable, precise travel in dense storage lanes. Application Modes The ZCF-1210 supports four flexible operational modes, allowing warehouses to optimize for space, throughput, and cost-efficiency: 1. Shuttle + AGV / AMR Dense Storage Wireless communication ensures seamless integration with automated guided vehicles. 2. Shuttle + Shuttle Carrier Dense Storage Supports wireless command and coordination with a shuttle carrier system. 3. Shuttle + Stacker Crane Dense Storage Precise pallet positioning for high-density automated storage systems. 4. Shuttle + Forklift Dense Storage Manual or semi-automated operations for mixed warehouse layouts. Each mode can be customized to warehouse dimensions, pallet size, and operational requirements, providing maximum flexibility. System Integration The ZCF-1210 can be integrated with: Automated Warehouse Management Systems (WMS) AGVs /AMRs and autonomous shuttle fleets Conveyor systems and transfer stations Stacker cranes for multi-level racking Forklift and manual handling workflows It is designed to support hybrid warehouse setups, enabling both manual and automated operations in the same storage environment. Call to Action Looking for a 4-Way Pallet Shuttle optimized for 1200 × 1000 mm pallets? Contact us for: Technical consultation Tailored warehouse solutions Fast quotation 👉 Get a Quote / Contact Us ZCF-1210 应用案例图片 |
