ZCF-1212
| ZCF-1212 4-Way Pallet Shuttle Smart Multi-Directional Pallet Handling for 1200 × 1200 mm Pallets Overview The ZCF-1212 is a high-performance 4-Way Pallet Shuttle designed for automated warehouses requiring ultra-dense pallet storage. It supports pallets sized 1200 × 1200 mm and offers flexible four-directional movement—forward, backward, left, and right—within racking systems. This model is ideal for warehouses that demand high storage density, operational flexibility, and optimal space utilization, including both ambient and cold storage facilities, as well as complex production line warehouses. Key Features · Four-Directional Movement: Enables forward, backward, left, and right motion to maximize space utilization. · Mechanical Lifting Mechanism: Stable and precise pallet lifting with a travel height of 56 mm. · High Load Capacity: Supports up to 1000/1500 kg, with heavy-duty versions available for custom applications. · Quick Direction Change: Changeover time ≤4 seconds for efficient warehouse operations. · Intelligent Control: WiFi communication with automatic/manual control options for flexible operation. · Custom Track Integration: Welded bracket with integrated rails, track spacing and heights optimized for this shuttle. · Robust Design: Designed for continuous operation in ambient (-5℃ to 45℃) or cold storage (-25℃ to 0℃) environments. Technical Overview General Specifications Item Specification Notes Main Feature | Mechanical lift, intelligent 4-way movement Ambient Version | -5°C ~ 45°C Cold Storage Version | -25°C ~ 0°C Rated Load | 1000 / 1500 kg | >2000 kg optional, custom solutions available Shuttle Weight | 350~400 kg Lifting Stroke | 56 mm Direction Change Stroke | 0 mm Travel Brake | Electric servo brake | Releases when powered off Lifting & Direction Motor | DC 48V 750W / 1000W Travel Motor | DC 48V 1200W / 1500W Positioning Accuracy | ±2 mm | Using positioning plate Acceleration | 0.3~0.5 m/s² Travel Speed (Empty) | ≤1.5 m/s Travel Speed (Loaded) | ≤1.2 m/s Direction Change Time | ≤4 s Lifting Time | ≤4 s Communication | WiFi client Charging Method | Manual / Automatic charging station Battery Capacity | 51.2 V 40 Ah | Optional Charging Time | 1.5–2 h (Ambient) / 2–3 h (Cold) | 20A / 12A Battery Type | LiFePO4 Battery Life | 1200+ cycles (100% depth) Operational Time | 6–8 hours Control | Automatic / Manual Operation Mode | Online / Standalone / Manual Protection | Temperature alarm / Collision protection Body Color | Yellow / Black / Gray | Customizable Pallet Shuttle Dimensions Item ZCF-1212 Shuttle / Corresponding Pallet Shuttle Size (L×W×H) 1300 × 980 × 164 mm Pallet Size (W×D) 1200 × 1200 mm

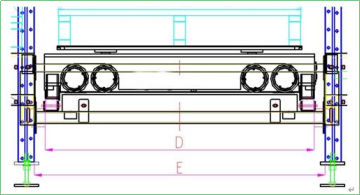

 Parameter Value (mm) Notes A 880 mm Integrated track rail spacing B 202 mm Integrated track rail height C 500 mm First pallet layer height from floor D 1300 mm Outer edge spacing of rails E 1350 mm Column spacing Pallet storage lanes adopt welded brackets with integrated rails. The shuttle dimensions and track configuration are optimized for safe, high-density operation. Application Modes ZCF-1212 supports four combination modes, providing flexible solutions for dense storage warehouses: · Shuttle + AGV Dense Storage – Wireless communication · Shuttle + Shuttle Carrier Dense Storage – Wireless communication · Shuttle + Stack Crane Dense Storage – Wireless communication · Shuttle + Forklift Dense Storage Industry & Application Scenarios Industries: Food & Beverage, Electronics Manufacturing, General Manufacturing Applications: Suitable for high-density, highly flexible automated warehouses. Typical environments include ambient and cold storage dense storage, and complex production line warehouses. System Integration The ZCF-1212 4-Way Pallet Shuttle is designed to operate as a core module within scalable automated warehouse systems, enabling flexible expansion and system upgrades over time. It supports seamless integration with: Warehouse Management Systems (WMS) for real-time inventory visibility Warehouse Control Systems (WCS) for task scheduling and route optimization Automated Guided Vehicles (AGVs) for cross-zone pallet transfer Stacker Cranes for vertical storage in multi-level racking Conveyor Systems for continuous inbound and outbound material flow Unlike traditional fixed automation systems, the ZCF-1212 enables modular deployment, allowing users to start with a semi-automated setup and gradually upgrade to a fully automated warehouse system. This flexibility makes it particularly suitable for dynamic warehouse environments where storage strategies and throughput requirements may evolve over time. Call to Action Looking for a 4-Way Pallet Shuttle optimized for 1200 × 1200 mm pallets? Whether you are upgrading an existing warehouse or planning a new high-density storage system, the ZCF-1212 offers the flexibility and performance you need. Contact us for: Customized system design based on your warehouse layout Technical consultation and solution evaluation Fast and competitive quotation 👉 Get a Custom Solution / Contact Us Today |
